pressure 125 t
chamfer lenght 3050 mm
distance between columns 2550 mm
ajustment speed 90.0 mm/sec
working feed 10.0 mm/sec
return speed 75.0 mm/sec
stroke 140 mm
dayligth 375 mm
column arm 250 mm
table width 90.0 mm
work height max. ca. 950 mm
Number of working hours 14.100 h
total power requirement 13.5 kW
weight 8500 kg
range L-W-H 3630 x 2300 x 2505 mm
** From a maintenance workshop
** Good / well-maintained condition
** With only approx. 14.100 operating hours (!!)

Equipment:

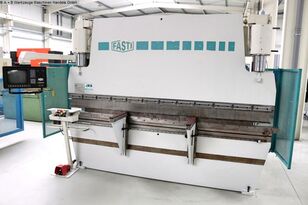

- CNC electro-hydraulic press brake

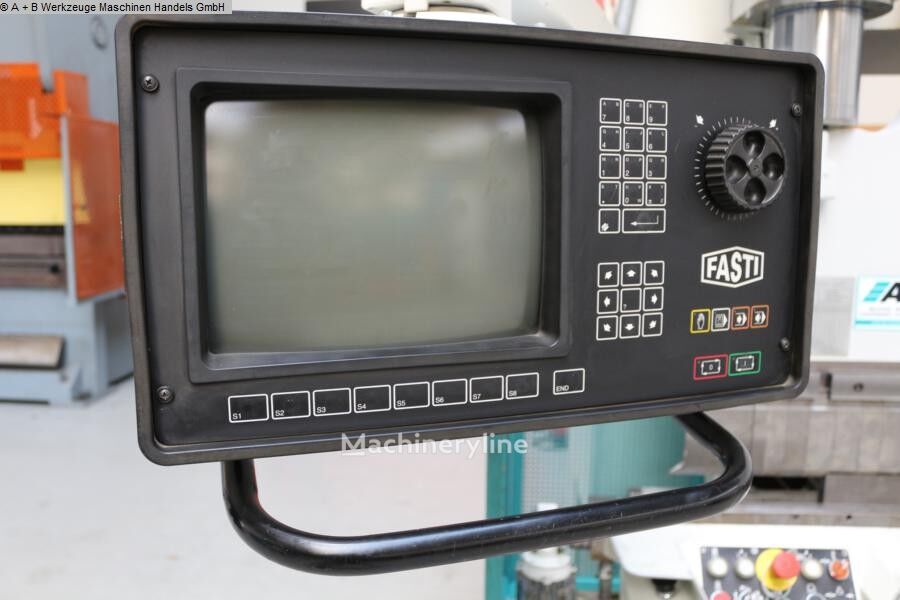

- DELEM CNC control - model "DA 58"
* Swiveling control panel, front left
* 2D graphic programming + product display
* Tool + program library
- CNC-controlled axes:
* Y1+Y2 / X1+X2 / R1+R2 / Z1+Z2 / CNC crowning
- CNC electro-motorized backgauge (X axes)
* Stop system with 2x CNC-controlled gantries
- CNC electro-motorized height adjustment of the backgauge (R axes)
- CNC electro-motorized adjustment of the stop fingers (Z axes)
- Manual upper tool clamping
- Manual lower tool clamping
- Various split upper and lower tools
- 2x stable, movable Front support arms
- 1x freely movable 2-hand/foot control
- Side guard (swinging doors)
- Rear guard (swinging door)
- Original operating instructions + control unit
- Manufacturer's CE declaration
